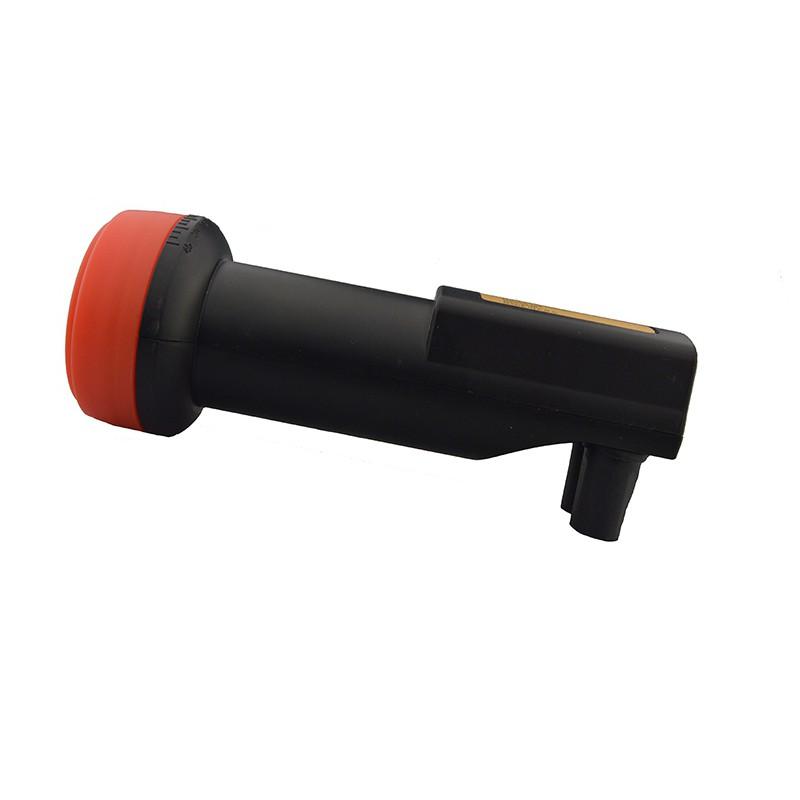

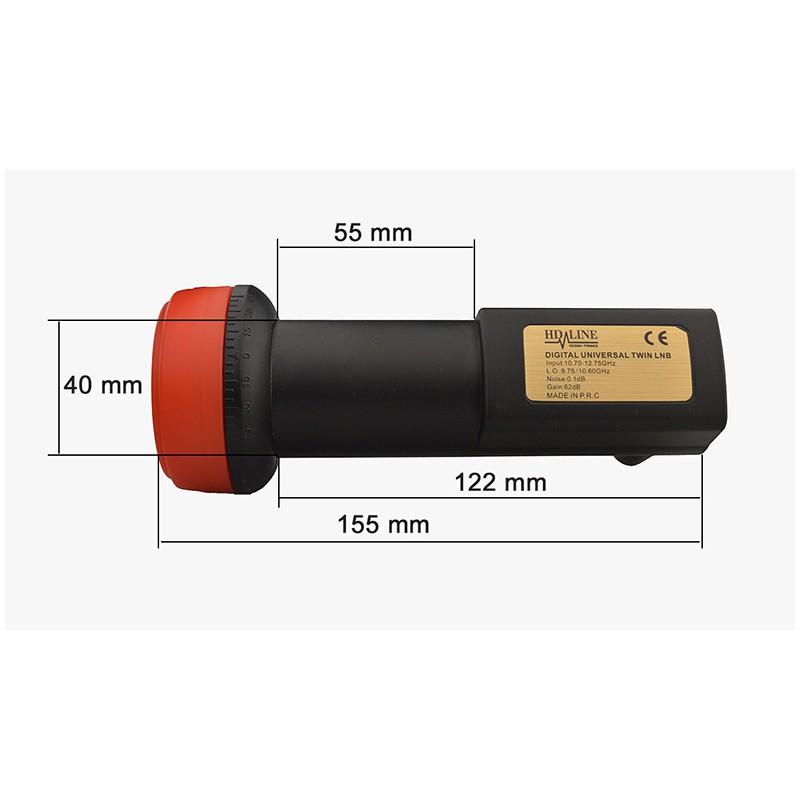

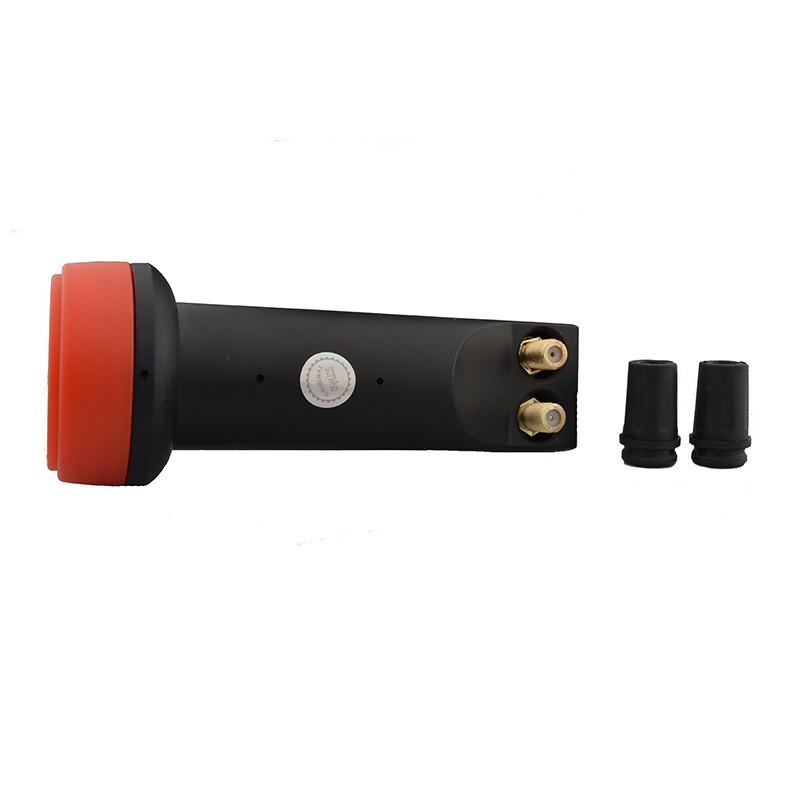

LNB Twin HD-LINE 62dB

  • Input: 10.70 - 12.75 GHz
  • L.O: 9,75 / 10,60 GHz
  • Geluid: 0,1 dB
  • Gain: 62 dB
  • LNB UNIVERSAL TWIN HD LINE één schotel met twee uitgangen compatibel digitaal

HD en FULL HD DVBS2 beschermhoes F-stekker

5 Items


28,00 €

Meer informatie

100% compatibel met Canal + Cube-demodulators !!
Nieuwste technologie met compatibiliteitsproblemen

Nieuwe versie 100% compatibel met Canal + Cube-demodulators !!
Nieuwste technologie met compatibiliteitsproblemen (in tegenstelling tot eerdere LNB Twin-versies).

LNB UNIVERSAL TWIN HD LINE één schotel met twee uitgangen compatibel digitaal

HD en FULL HD DVBS2 beschermhoes F-stekker

Invoer frequentiebereik:
Lage band: 9.75 GHz ~ 10.60
Hoge band: 10.70 ~ 12.75 GHz

Uitvoer frequentiebereik
Lage band: 950 ~ 1950 MHz
Hoge band: 1100 ~ 2150 MHz

Geluidscijfer
Lage band: 0,1 dB (Typ.)
Hoge band: 0,1 dB (Typ.)

Krijg conversie
62dB (min.)
69 dB (max.)

Versterking van vlakheid
± 0.1dB / 26MHz

POL Cross. isolatie
29 dB (typ.)

L.O. Frequentie
Lage band: 9,75 GHz
Hoge band: 10,60 GHz

L.O. Frequentiestabiliteit
± 1,0 MHz (℃ max.) @ +25
± 2,0 MHz (max.) Tot -30 ℃ ~ +70 ℃

L.O. Live-ruis
-59dBc / Hz @ 1KHz
-79dBc / Hz @ 10KHz
-98dBc / Hz bij 100 kHz

Afbeelding afwijzing
62dB (min.)
69 dB (max.)

ROS-uitvoer
2.0: 1 (max.)

Uitgangsvermogen
0dBm (min.) (Met compressieverhouding van 1 dB)

Type connector
75Ω vrouwelijke connector

DC Stroomverbruik
90mA (Typ.)

Lage band / hoog schakelen
Lage band: 0 Hz
Hoge band: 22 KHz ± 4 KHz

POL. Schakelspanning
10,5 ~ 14,0 V @ VP
16.0 ~ 20.0 V @ HP

Bedrijfstemperatuur
-30 ℃ ~ +70 ℃
