LNB Twin TRIAX Universal

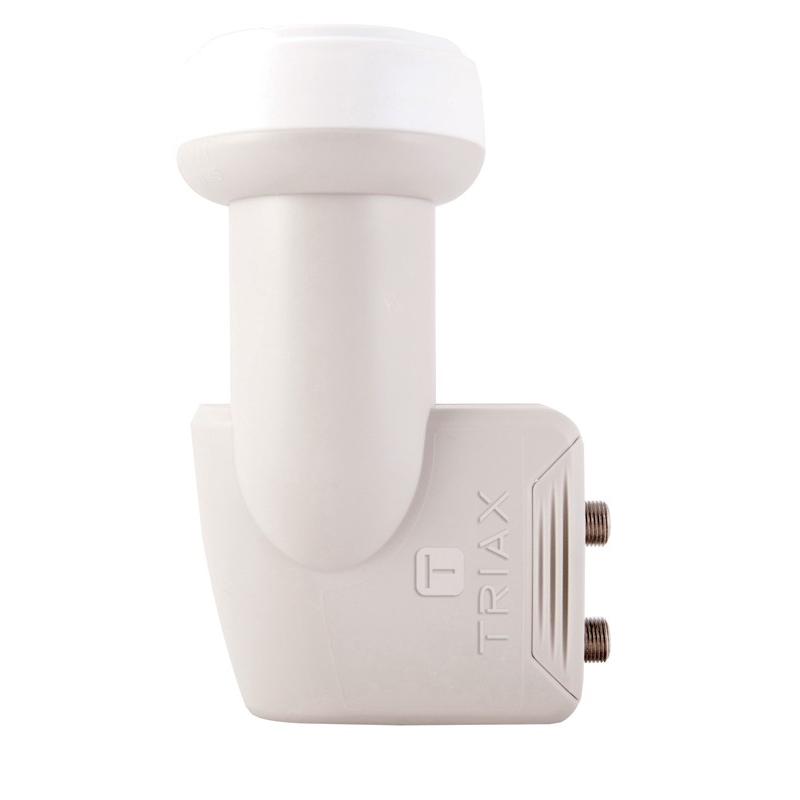

LNB Twin TRIAX Universal TTW 006 View larger
Brand :
TRIAX
  • 2 years warranty
  • Input frequency: 10.7 - 12.75 GHz
  • 2 outputs for 2 satellite terminals

This product is no longer in stock

29,00 €

More info

Characteristics

Phase noise at room temperature - 1 kHz: - 50 dBc / Hz
Phase noise at room temperature - 10 kHz: - 75 dBc / Hz
Phase noise at room temperature - 100kHz: - 95 dBc / Hz
Noise level: - 60 (max.) DBm
Image frequency rejection (min): 40 dB
Source F / D @ 11.8: 0.615 GHz
Frequency stability (-40 ~ +60 ° C): ± 2.1: 1 MHz
High band switching: 22 (± 4) kHz

Frequency band

High band output frequency: 1100 - 2150 GHz
Low bandwidth output frequency: 950 - 1950 GHz
Frequency of O.L. - High band: 10.6 GHz
Frequency of O.L. - Low band: 9.75 GHz
L.O. technology: DRO
High band input frequency: 11.7 - 12.75 GHz
Low band input frequency: 10.7 - 11.7 GHz

Gain

Linearity of Gain (outside 26 MHz): ± 1.0 (typ.) DB
Variation of the Gain (beyond the operating band): 5 p-p (typ)
Maximum conversion gain: 64 dB
Conversion gain (min at room temperature): 50 dB
Max noise factor : 0.3 dB

Isolation

Cross polarization isolation: 25 typ. dB

Operational
Power consumption (typical): 170 mA
Vertical operating voltage: 15.5 ~ 21.0 V / DC
Horizontal operating voltage: 10.5 ~ 14.5 V / DC
Operating temperature range: -40 ~ +60 ° C

Connectors

Connector Type: F-Female

Mechanics

Maximum depth, feeder included: 135 mm
Diameter: Ø 40 mm
Height: 137 mm
Depth: 97 mm
Width: 59 mm
Quantity per package: 50
Volume: 0.001 m3
Net weight: 0.206 kg
Package weight: 0.042 Kg
Gross weight: 0.248 Kg
Gross height: 0.065 m
Gross width: 0,090 m
Gross Depth: 0.145 m
