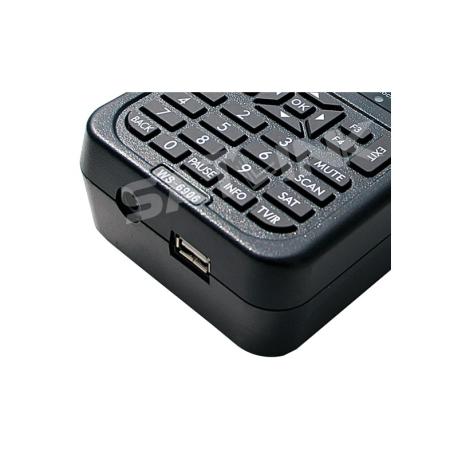

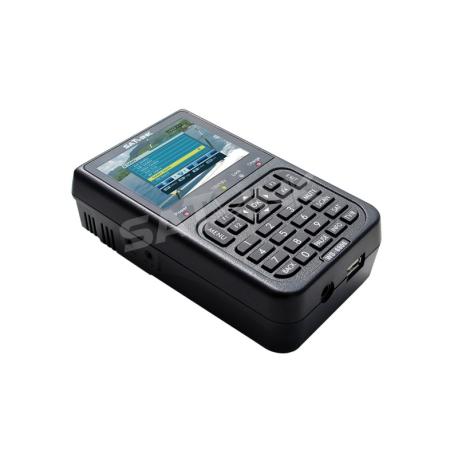

Satlink WS-6906

Digital satellite pointer

This product is no longer in stock

65 €

More info

MAIN FUNCTION:

· 3.5 "/ 8.9 cm color LCD display
· Direct display of free channels / FTA, TV and Radio on the screen
· AV-In input and AV-Out output
· Locking of the signal by LED on the housing but also by level bars on the LCD screen
· Read bit error rate
· Reading noise
· DBuV playback
· Lithium-ion battery 3000mA
· DiSEqC & 22kHz control
· Fully DVB compatible
· Frequency range: 950mHz-2150mHz
· Signal level: 65dbm ~ 25dbm
· Symbolic rate: 2mbps ~ 45mbps
· Video format: PAL / NTSC / SECAM
· Software update via USB
· 220 V charger included
· 12V car charger included
· USB cable & Strap
· Size: 158x95x45, Lightweight and portable

Accessories included:

12V DC power charger
Car charger cigar lighter
Carry case
USB cable for update
Shoulder strap
Notice

Technical specifications:

Compatible

DVB-S

Yes

LNB / Tuner input

Connector

F type, male

Frequency range

950MHz-2150MHz

Signal level

-65dBm~-25dBm

LNB power supply

13/18V, max400mA

LNB switch control

22KHz

DiSEqC

1.0

Demodulator

Front

QPSK

Symbol rate

2Mbps~45Mbps

SCPC et MCPC

Yes

Spectral inversion

Auto Conversion

System Resources

Processor

32bit Processor (200MHz)

Memory

SDRAM

 16Mo

FLASH

 2Mo

EEPROM

 8Ko

Video decoder

MPEG 2

Main Profile @ Main Level

Transfer speed

Up to 15Mbps

Resolution

720*576,720*480

Video Format

PAL / NTSC / SECAM

Audio MPEG

MPEG 1 layer 1&2



Type

Mono

Sampling rate

32,44.1 and 48KHz

Interface

Connector

USB

Power

Batterie Li-oN

3000 mAh



Power supply

12.6Volt



Charger

90-240V

Connectors

Digital tuner input

F type, male

Specifications

Size

9.5x15.5x4.5 (cm)



Weight (Net)

0.5 K
